Ultrasound Therapy Machines

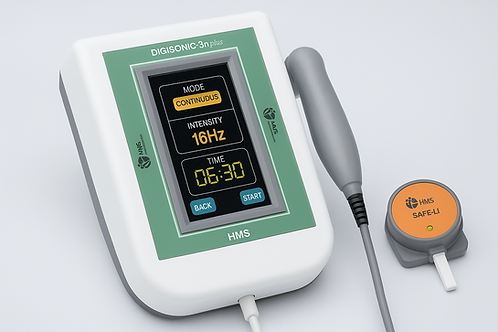

Advanced and trend Ultrasound therapy from HMS R&D. DIGISONIC 3n+ is designed indigenously with international standards with incomparable quality. The DIGISONIC 3n+ comes with 1 and 3 MHz outputs with contact control sensor facility. Micro controller based circuitry with 7″ Colour touch display for viewing all parameters. 47 Evidence based pre-programs and 30 re-writable user memory. Contact controls suspends the Ultrasound output when transducer contact with skin becomes insufficient. Easily selectable continuous 1 & 3MHz, 3 Frequency settings with 9 pulsed modes.

SPECIFICATION

• Frequency: 1 and 3 MHZ
• Therapy modes: Continuous / Pulsed
• Pulse mode: 10, 20, 30, 40, 50, 60, 70, 80, 90
• Pulse Rate: 16Hz, 48Hz & 100Hz
• Intensity: 0.1 – 3 W/cm²
• ERA Transducer L: 5cm²
• ERA Static Transducer: 5cm²
• ERA Transducer S: 1cm² (optional)
• Pre-programs: 47 Evidence based protocols
• User memory: 30 Re-writable positions
• Timer: 1-99 mins
• Type of beam: Collimated
• Beam non-uniformity Ratio-5:1 (Max)
